Inventory Synchronization

Contents of this Topic: ShowHide

Overview

SEOM is able to synchronize inventory with multiple shopping carts defined within a single store data file the MS Access or SQL database that contains the users order information and program preferences. It does not contain Reports, which are housed in the Monsoon OMS program file (MS Access database)., either on a manual or "real-time" basis. The shopping carts must support inventory synchronization.

To determine a shopping cart's manual QOH capabilities, check its Shopping Cart an e-commerce software system that allows a retailer to sell products on the Web. In the context of Monsoon OMS, it refers to the settings that describe a merchant's web store to the program, allowing it communicate with the online shopping cart and import orders and other information Functions screen synonymous with the Microsoft Access Form object or graphical user interface (GUI).

To find out which shopping carts support Real-Time Inventory Synchronization, please see the "Real Time Inventory" column on the Shopping Cart Matrix. If there is an "S" in that column, the shopping cart only offers the ability to synchronize inventory at the SKU the abbreviation for Stock Keeping Unit; a unique identifier used to track product inventory level, rather than at the attribute Product attributes are color, size, or style, etc. An attribute can have various options or variants from which the customer can choose, such as Large or Extra Large for the size attribute, or Blue or Green for the color attribute. The base product SKU combined with each of the possible options for each attribute create a sub-SKU record in Monsoon OMS's inventory. Sub-SKUs are important for tracking the accurate quantity on hand for a particular item rather than the general product (option one of the possible attributes of a product; for example, blue is an option for the color attribute of a product) level.

Some shopping carts also require additional third-party add-ons, service subscriptions, or special setup activities at the Web store. Look for specialized instructions in the Knowledge Base topic with the title, Real-Time Inventory Tracking with ______ Cart, for the shopping cart in question.

The majority of shopping cart systems that support Real-Time Inventory Synchronization follow the same basic steps that are outlined later in this topic, or refer to the osCommerce topic as an example of the standard synchronization process. If there is no specific shopping cart topic for real-time inventory synchronization, then it most likely does not support that feature. Refer to the Shopping Cart Matrix for confirmation.

Manual Inventory Updates between SEOM and Shopping Carts

Manual inventory updates are performed at a single point in time by clicking the [Send QOH To Website] or [Get QOH from Website] buttons found on the Shopping Cart Functions screen. Some carts allow QOH information to be pushed to or pulled from the Web site, some only allow the information to be transferred in a single direction, while others do not allow any QOH information to be transferred to or from SEOM. To determine the capabilities of the shopping cart in use, check its Shopping Cart Functions screen to see which buttons are active for that cart, or review the Shopping Cart Matrix.

The buttons seen in image above, only "push" or "pull" the current QOH numbers from Order Manager or the Web site at a single point in time.

This process is used to initialize inventory counts with all affected shopping carts prior to enabling Real-Time Inventory Synchronization. These buttons should not be used once Real-Time Inventory Synchronization is activated.

If the Shopping Cart Functions screen of the cart does not contain these buttons, the shopping cart does not support inventory synchronization. If only one of these buttons is visible, QOH data is only transferred in that one direction.

Follow these general guidelines to manually synchronize your inventory QOH counts with a Web store:

1. Determine whether SEOM or your shopping cart contains the most accurate count of your inventory. In cases where the shopping cart only permits the transfer of QOH data from the Web site to SEOM, verify the QOH counts at the Web site before continuing with step 2.

2. If your shopping cart contains the most accurate inventory count, use the to [Get QOH From Website] button on the Shopping Cart Functions screen. If an item in your shopping cart store does not exist in SEOM, the program adds that item to SEOM tables if the Create Records for New Products check box is checked.

3. If the SEOM count is more accurate, use the [Send QOH to Website] to send the most current data to the web store.

The [Maximum number of items to send] is intended to prevent server time-out errors, by limiting the number of records that are sent at one time. For example, if you have 100 QOH updates to be sent, two groups of 50 records each will be sent. Do not alter this number unless you experience time-out errors.

Real-Time Inventory Synchronization

Real-Time Inventory Synchronization is the dynamic transfer of QOH information between SEOM and one or more Shopping Carts (Web sites) which are defined within a single store data file. To participate in the real-time synchronization process, the shopping cart must support that feature.

Once the dynamic process is configured, changes that are made to the quantity on hand (QOH) of an inventory item are communicated directly to the shopping cart(s) almost immediately. The changes can occur by several means, such as manual QOH adjustments, POS abbreviation for Point-of-Sale. The cash register interface for use with walk-in business at "brick and mortar" stores. Used with barcode scanners and cash drawers. Sales made on the POS screen draw from the same inventory as orders imported from online stores. sales, manually placed or imported orders, as well as the receiving of new merchandise through the Purchase Order system.

For example, if SEOM and the Web site both show 100 pieces in stock for a given item, and an additional 100 pieces is received from the supplier vendor and added into inventory, SEOM will tell the shopping cart(s) to increase their QOH for that product by 100 pieces, as well. Similarly, when orders are imported from a shopping cart, SEOM will internally decrement the QOH for that product accordingly, and communicate the change in QOH to all other carts that are defined in the same store data file, if they are configured for real-time inventory synchronization.

To temporarily prevent manual QOH adjustments of individual products from being sent from SEOM to the Shopping Carts (Web sites), clear the Send QOH changes to Web sites box on the Adjust Inventory screen.

To enable real-time inventory synchronization, follow these steps:

1. Follow steps 1 through 3 in the Manual Inventory Updates section above, to do an initial inventory synchronization, and then close out of the Shopping Cart Functions screen.

2. Go to Main Menu>Quick Clicks>Set System Parameters settings in Stone Edge that enable users to configure the program integrate with their business operations. Stone Edge includes hundreds of System Parameters to do just that. To change a system parameter, go to the Main Menu > Settings > System Functions > Set System Parameters..

3. Select to "left-click" the mouse on an object, usually a row in a table, in the context of Monsoon OMS documentation the Program parameter group.

4. Choose the SynchQOH parameter and set the parameter value to TRUE. Click [Save].

5. Click [Close]  to exit the Set System Parameters screen.

6. Go to Main Menu>Settings>System Functions>Shopping Carts

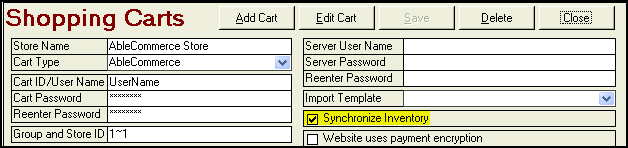

7. On the Shopping Carts screen, select a cart from the Current Carts List and click the [Edit Cart] button.

8. If your shopping cart supports inventory synchronization, the Synchronize Inventory check box will be visible in the upper right-hand area of the screen.

9. Click in the [Synchronize Inventory] check box.

10. Click [Save] and then [Close] to exit the Shopping Carts screen.

VERY IMPORTANT NOTES electronic records, for internal use only, that contain additional details about program events, actions or customer information that are stored with order, customer, inventory and supplier records. Notes can be entered manually by the user or automatically entered by the program, based on parameter settings in some cases.:

Follow these recommendations to avoid severe inventory management problems:

• It is strongly recommended that these functions are performed outside of normal business hours when initially configuring this feature.

• Make sure that all outstanding orders have been imported from each cart that is defined within the same store data file before sending Manual QOH from SEOM to those Web sites.

• If the shopping cart retains inventory in the shopping basket (e.g. Miva), make sure all baskets are emptied BEFORE turning on this feature.

• SEOM begins transmitting inventory changes immediately after the Synchronize Inventory check box is selected. If more than one site needs to be synchronized with SEOM, make sure that products which appear on multiple sites all have the same beginning QOH before enabling that feature on each of the affected shopping carts.

• Inventory Synchronization at the item level, either via the Manual Update or Real-Time Synchronization processes, can be impacted by settings on the Web Fields tab of the View Inventory screen. Review them carefully.

Inventory Adjustments on the Web Site

Once you have set up real-time inventory synchronization in SEOM, you should not make manual inventory adjustments at the Web site(s) because those adjustments are not communicated to SEOM unless the [Get QOH from Web Store] button on the Shopping Cart Functions screen is clicked (manual inventory synchronization process).

If it becomes necessary to reset the inventory counts manually, disable real-time inventory synchronization in SEOM first. This can be accomplished by clearing the Synchronize Inventory box on the Shopping Carts screen and saving the Shopping Cart definition.

It can also be accomplished by setting system parameter SynchQOH to FALSE, however, be aware that if more than one shopping cart system in a single store data file is configured to perform real-time inventory, all shopping carts will be affected by the changing of this parameter. In that instance, it would be best to alter the specific shopping cart definition rather than changing the system parameter.

Execute steps 1-3 outlined in the Manual Inventory Update section to get all of the affected sites back to the same starting values before re-enabling Real-Time Inventory Synchronization.


Inventory Synchronization and the Stack Controller

Adjustments or updates to your inventory quantities are recorded by the program and stored in a table commonly referred to as the  "Web Stack". The "Stack Controller the Stack Controller is a component of the program that is in charge of sending "posts," such as email, order status, and inventory updates from Monsoon OMS to various destinations. It can be configured to run on each PC that uses OMS (local - default setting), or it can be configured to run only on a single workstation in the complex (shared)," sends the information waiting in the Web Stack to the Web sites. For more detailed information, refer to the Knowledge Base topic, The Stack Controller.

If SEOM is run on more than one computer, it may be beneficial to designate a single machine to act as the Shared Stack Controller to improve the performance of the program on the remaining PCs in your configuration.

By default, the program is set to send updates originating at a given PC Personal Computer, or workstation from that local PC. The downside to this is that sending a lot of records can bog down the program, negatively impacting the response time of other SEOM actions the user may be trying to perform.

By choosing the Shared Stack Controller, the workload of sending updates to Web sites can be shifted onto a low usage machine, improving the performance of the remaining workstations in the complex. Choose a PC that is always powered-on. This workstation must have Microsoft Access and SEOM installed and should be the first PC to launch SEOM after the complex has been shutdown and restarted.

Troubleshooting

If you sense that real-time inventory adjustments are not being made at your Web site, check the Stack Controller for error messages (CTRL+Shift+S from Main Menu of SEOM).

If the Local stack is being used, check the stack on each machine to look for errors. Check the value in the Attempts column of the first record in the Web Stack to see the number of times the Stack Controller attempted to transmit that data. If it has been attempted more than 10 times, the record should be bypassed by the program. If that is not the case, check the value in the Last Response column for information as to why the record could not be sent.

For further assistance, contact the SEOM Technical Support Department at support@stoneedge.com or (610) 994-3699, Option 2, between the hours of 9 am to 6 pm, Monday through Friday EST.

Created: 2/29/12

Revised: 9/5/13

Published: 04/14/16
