Printing Integrated Shiprush for FedEx or UPS Shipping Labels

Contents of this Topic: ShowHide

Overview

This topic discusses the methods and places in the program where shipping labels can be printed via the ShipRush integration for FedEx and UPS. It is recommended that the direct integration with Endicia DAZzle is used for printing integrated USPS shipping labels in OMS .

Prerequisites

1. Complete the steps in the Knowledge Base topic, Setting Up ShipRush, for each of the shipping carriers used.

2. Also be sure to enable or define shipping methods through the Shipping section of the Store Setup Wizard and assign a shipping method to each order.

3. For batch label printing, ensure accurate weights and product dimensions are entered in all product inventory records as the program passes those values to the shipping software to calculate shipping costs.

Printing Shipping Labels One at a Time

Shipping labels can be printed at several locations in OMS :

Process Orders

From the Order or Item tab Print button

1. Click Print and select to "left-click" the mouse on an object, usually a row in a table, in the context of Monsoon OMS documentation the box labeled Shipping Label.

2. The program displays the ShipRush Entry screen synonymous with the Microsoft Access Form object or graphical user interface (GUI) where shipping data can be altered if necessary.

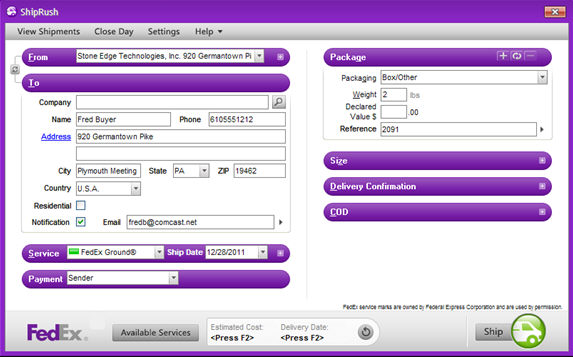

3. Click Print and the ShipRush user interface is displayed. You can change any information on this screen prior to printing the shipping label.

4. Click Ship when ready to print the shipping label.

From the Order or Item tabs Approve button

1. Click Approve and select the box labeled Print Shipping Label.

2. Click Print Now to send the label directly to the printer, The program does not display the ShipRush user interface.

From the Shipping & Tracking tab

1. Click Print Shipping Label.

2. The program displays the ShipRush Entry screen where shipping data can be altered if necessary.



3. Click Print and the ShipRush user interface is displayed, and you can change any information on this form prior to printing the shipping label.

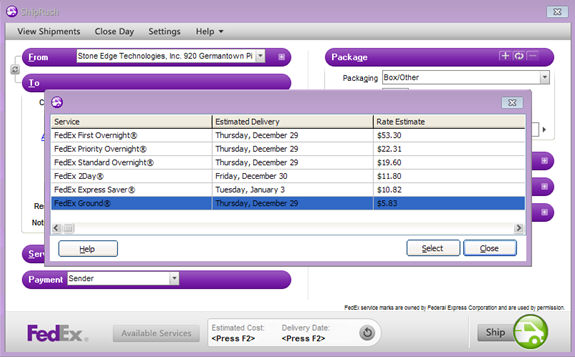

4. Click Available Services to get estimated shipping rates and delivery dates.

5. Click Ship when ready to print the shipping label.

Manual Orders

Summary Tab

1. Click Save Order.

2. Select the box labeled Print Shipping Label.  (The order must have a shipping method associated it to see the Print Shipping Label check box.)

3. Click Approve & Print Now.

4. The label is sent directly to the printer, the program does not display the ShipRush user interface.

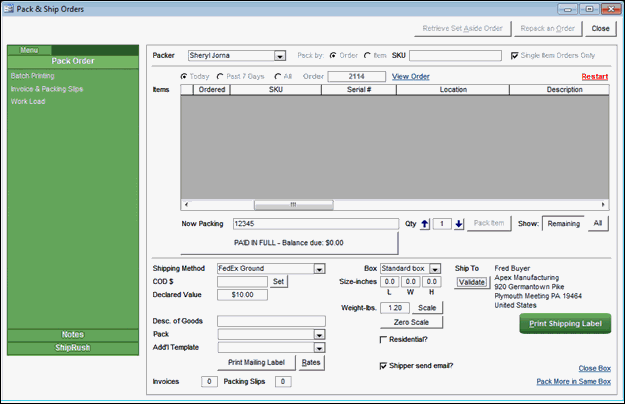

 Pack & Ship

1. Select a packer.

2. Load an order, pack the items and post the data.

3. Click Print Shipping Label. The shipping label is sent immediately to the printer, unless the order is sent to an international destination. In that case, the ShipRush user interface is displayed and you must enter the required, additional information before a shipping label can be printed. In Version 7.1, the system parameter ShipRushShowAtPackShip is introduced to allow you to force the ShipRush interface to be displayed.

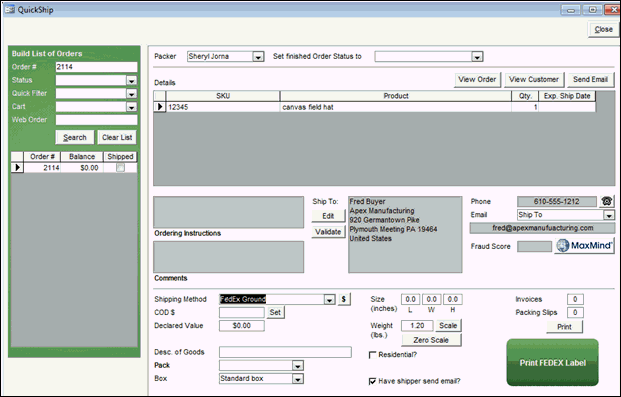

QuickShip

1. Select a packer.

2. Load an order, pack the items and post the data.

3. Click Print Shipping Label. The shipping label is sent immediately to the printer, unless the order is sent to an international destination. In that case, the ShipRush user interface is displayed and you must enter the required, additional  information before a shipping label can be printed.

Created:

Revised: 1/30/15

Published: 04/14/16
