Setting Up a 3D Cart Shopping Cart

Setting Up the Integration in Your 3D Shopping Cart

To get started setting up the integration between your 3D Cart and the Order Manager, log into your 3D Cart store site.

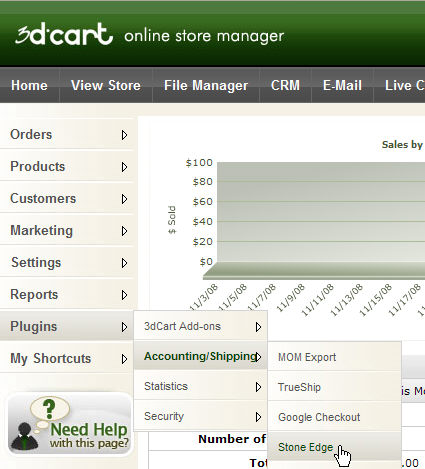

1. On the left navigation bar, click Plugins> Accounting/Shipping> Stone Edge.

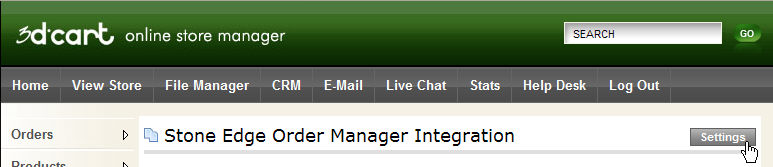

2. On the Stone Edge Order Manager Integration page, click the Settings button.

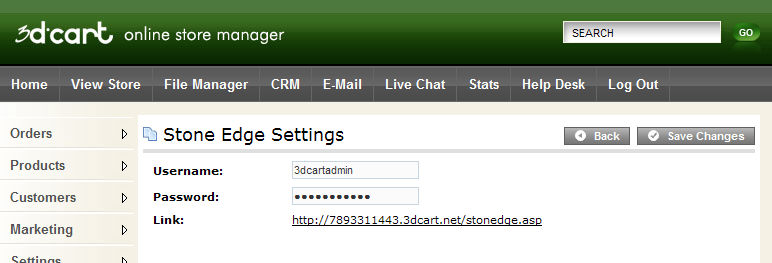

3. The settings you will need (Username, Password, Link) to enter into the Order Manager Shopping Carts screen are located on the Settings page.

4. Leaving this web page open, minimize your browser so you can refer back to these settings when setting up the cart in the Order Manager in the next section.

Setting Up the Shopping Cart in the Order Manager

1. You can access the Shopping Carts dialog box one of four ways:

1. • Main Menu> Maintenance Menu> Cart Functions tab> Create/Edit Shopping Carts

   • Main Menu> Maintenance Menu> Setup Functions tab> Store Setup Wizard> Shopping Carts tab> Create and Edit Shopping Carts

   • Quick Clicks> Create/Edit Shopping Cart

   • Quick Clicks> Setup Wizard> Shopping Carts tab> Create and Edit Shopping Carts

2. The Shopping Carts dialog box opens.

3. Click Add Cart. The Shopping Carts dialog box opens.

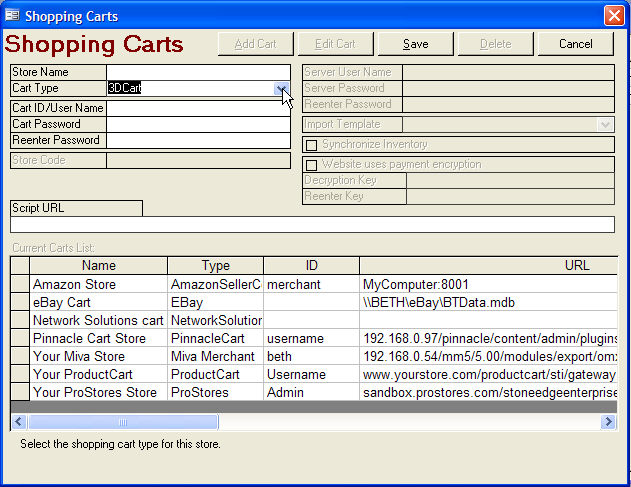

4. Click on the Cart Type drop down list and select 3DCart. If you are licensed to use one shopping cart only, you will not see a drop-down list; 3D Cart is your default cart type.

5. Enter the Store Name. The store name can be anything you want it to be as long as it is easily distinguishable from any other stores you may have.

6. In the CartID/User Name field, copy and paste the Username from the Stone Edge Settings page of your 3D Cart Online Store Manager interface.

7. In the Cart Password field, type the Password that is used in the Stone Edge Settings page of your 3D Cart Online Store Manager interface.

8. Re-enter your Password in the Reenter Password field.

9. In the Script URL field, copy and paste the Link (URL) from the Stone Edge Settings page of your 3D Cart Online Store Manager interface. (The URL is the secure path to your store followed by /stonedge.asp, e.g. https://www.secure-shops22.com/3dcs/stonedge.asp).

           Note: In the previous example, "stonedge" is spelled with one "e". This is not a typographical error, it must be spelled that way.

10. If you plan to synchronize inventory between the Order Manager and your shopping cart, click in the Synchronize Inventory checkbox.

Note: The system parameter Synch QOH (in the Program parameter group) must be set to True to enable the Synchronize Inventory checkbox.

11. Click Save.

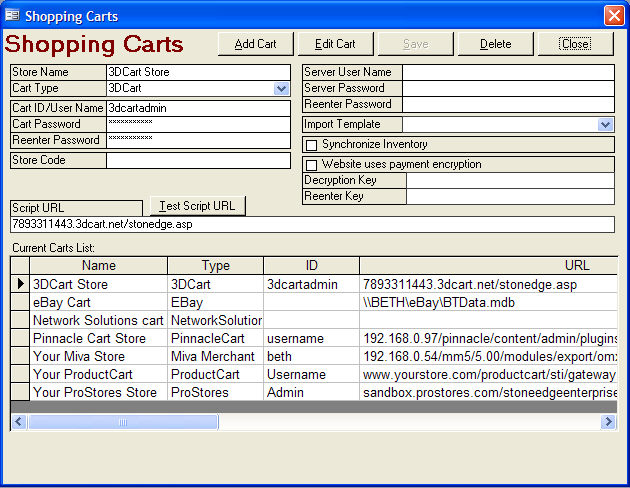

12. The cart is added to the Current Carts List: table at the bottom of the screen.

13. Click Close to exit the Shopping Carts dialog box.

Updated 12/3/08

Modified 10/22/10
